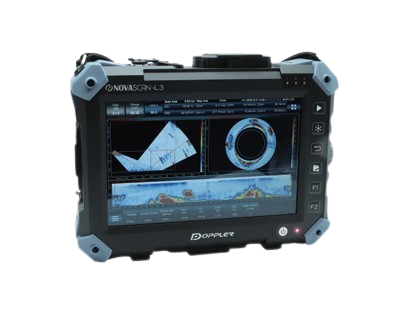

NOVASCAN L3

NOVASCAN L3 PORTABLE PHASED ARRAY ULTRASONIC DETECTOR

Novascan L3 is a high-performance portable phased array ultrasonic detector that integrates multiple non-destructive testing technologies. It supports PA, UT, TOFD and TFM inspection modes, providing versatility for a wide range of industrial applications. Its advanced processing capability ensures accurate detection and clear visualization of small defects.

Performance

The Novascan L3 delivers high-speed and high-precision inspection with a pulse repetition frequency of up to 20 kHz, a wide frequency range from 0.5 to 20 MHz, and a 16-bit data acquisition system. With a sampling rate of up to 100 MHz and up to 800% A-scan display amplitude, the equipment provides reliable detection and minimizes the risk of missed indications.

Dual Function

The equipment integrates multiple inspection modes in a single unit, including phased array, conventional ultrasonic testing, TOFD and total focusing method. This allows users to perform different types of inspections with one device, reducing operational complexity and increasing efficiency in the field.

Advanced Imaging and Processing

The system includes advanced imaging algorithms such as TFM with multiple propagation paths and combinations. It enables high-resolution imaging and accurate defect characterization, especially for weld inspection and critical components. Real-time data processing improves inspection speed and reliability.

Portable and Lightweight Design

The Novascan L3 features a compact and ergonomic design, weighing approximately 2.7 kg. It is equipped with a 10.1-inch industrial touch screen with 1920 by 1200 resolution and a rechargeable battery with up to 4 hours of operation, making it ideal for field inspections in complex environments.

Applications

The Novascan L3 is suitable for weld inspection, thickness measurement, flaw detection and structural evaluation. It is widely used in industries such as petrochemical, power generation, aerospace, railways, steel structures and pressure vessels.
